Products > Vertical Form Fill Seal > 300 Series

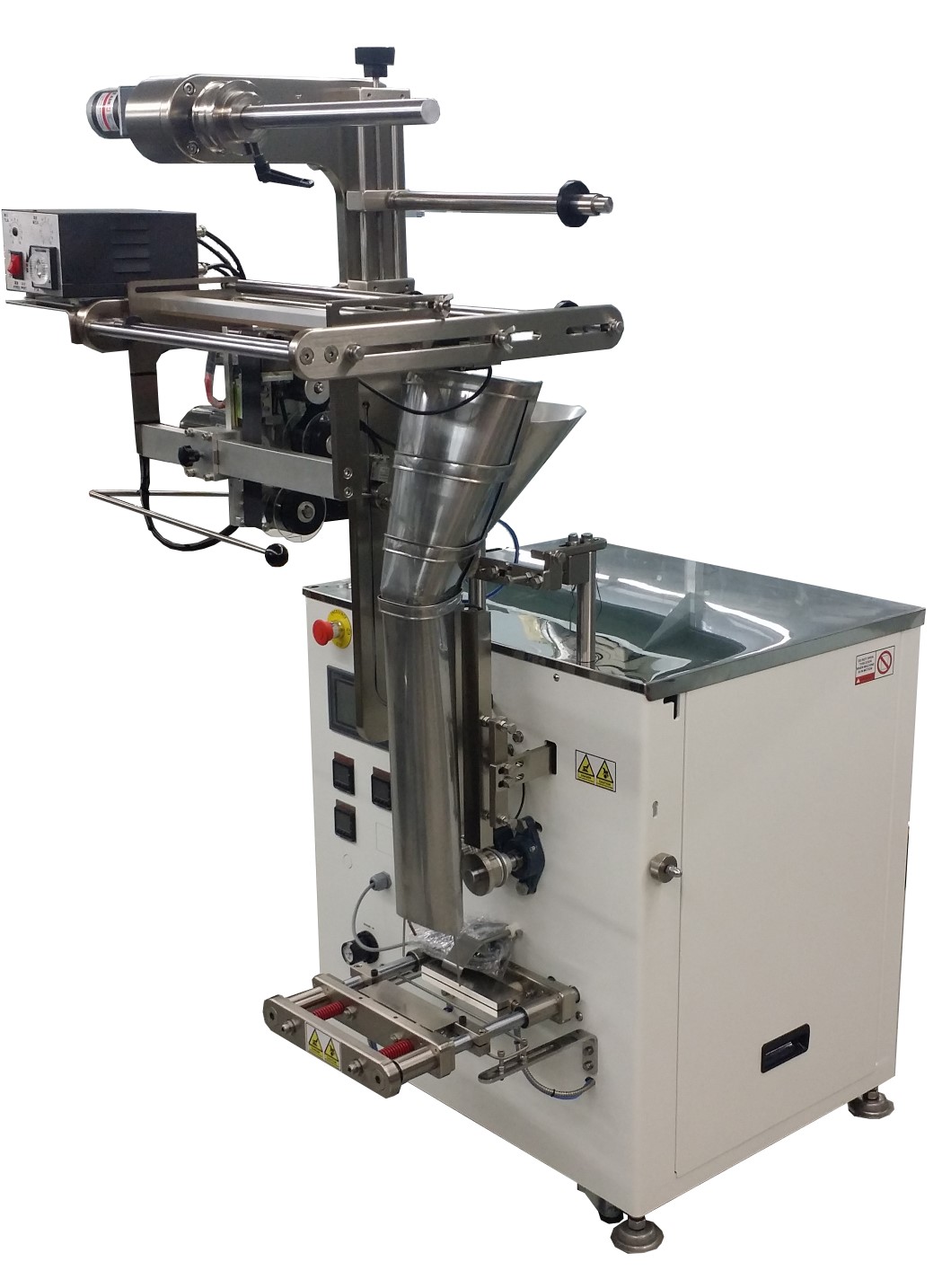

Vertical Form Packaging Machine

Model : HSY-VE1320


🔍 click here to enlarge


⤋ download broucher / catalogue

Packing method :

Pillow


Pillow chain

Overview

  • Packaging Versatility
    The HSY-VE1320 is capable of performing multiple standard bag styles, such as pillow seal, gusseted bags and chain bags.
  • Application Versatility
    The HSY-VE1320 is designed to package an unlimited variety of products, such as ketchup, curry paste, powders, bakery and confectionery, tea, coffee as well as per food and non-food products such as detergents.
  • Function Versatility
    Reliable worm gear motor / servo motors for all machine functions. From the wrapping material in-feed to bag forming, sealing the seams, up to the filling. The accurate product dosing is performed immediately after the bottom sealing.
  • Film Material Versatility
    The flexible machine offers heat-sealing and poly-sealing options, with freely adjustable sealing temperature according to product specification.
  • Easy Integration
    The modular machine design of HSY-VE1320 with various up and downstream interfaces allows for easy integration of: dosing devices (screw augers, weightier, cup-fillers, liquid pumps), coffee valve applicators, gas flushing, printers, labellers as well as check-weightier and metal detector.
  • Module ++
    As part of the Highpack Packaging Technology portfolio, the modular machine design of the HSY-VE1320 allows an easy integration with other packaging equipment such as Counter Indexing Conveyor or case packers for secondary packaging.
  • Machine Design
    The low machine height facilitates a compact product stream, leading to higher speed and increased efficiency and ergonomics.





Technical Specification

Model HSY-VE1320
method manual dosing
type via foot switch
Material (Structure) Mild Steel, with paint coated finishing
Cycle Speed 15 - 30 bpm (depending on application)
Electrical 2.4kw, 230v, 1 phase
Drive Motor Main Drive - Worm Gear Motor 0.75kw
Film Pull Device - Stepping Motor 70k
Film Width 320mm max.
Bag Sizes Width 150mm x length 280mm (custom made)
Packaging Material Aluminium Foil-Pe, Opp-Pe, Opp/Cpp, Paper+Pe & Other special heat sealable film
Type of Seal Pillow / Center Seal / Pillow Chain
Machine Weight Approx. 320kgs
Machine Dimension W 730mm, L 1100mm, H 1820mm
