Products > Vertical Form Fill Seal > 400 Series

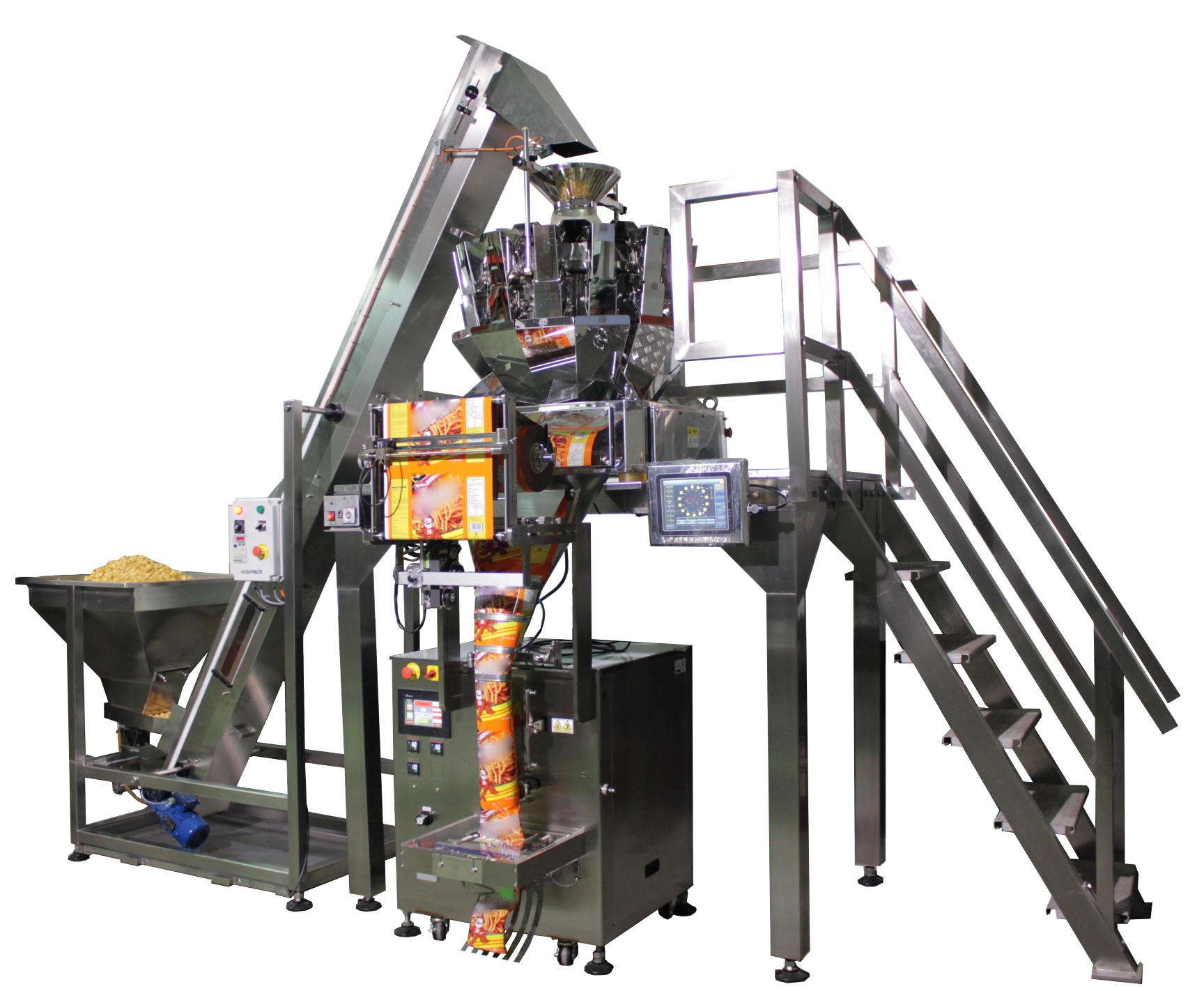

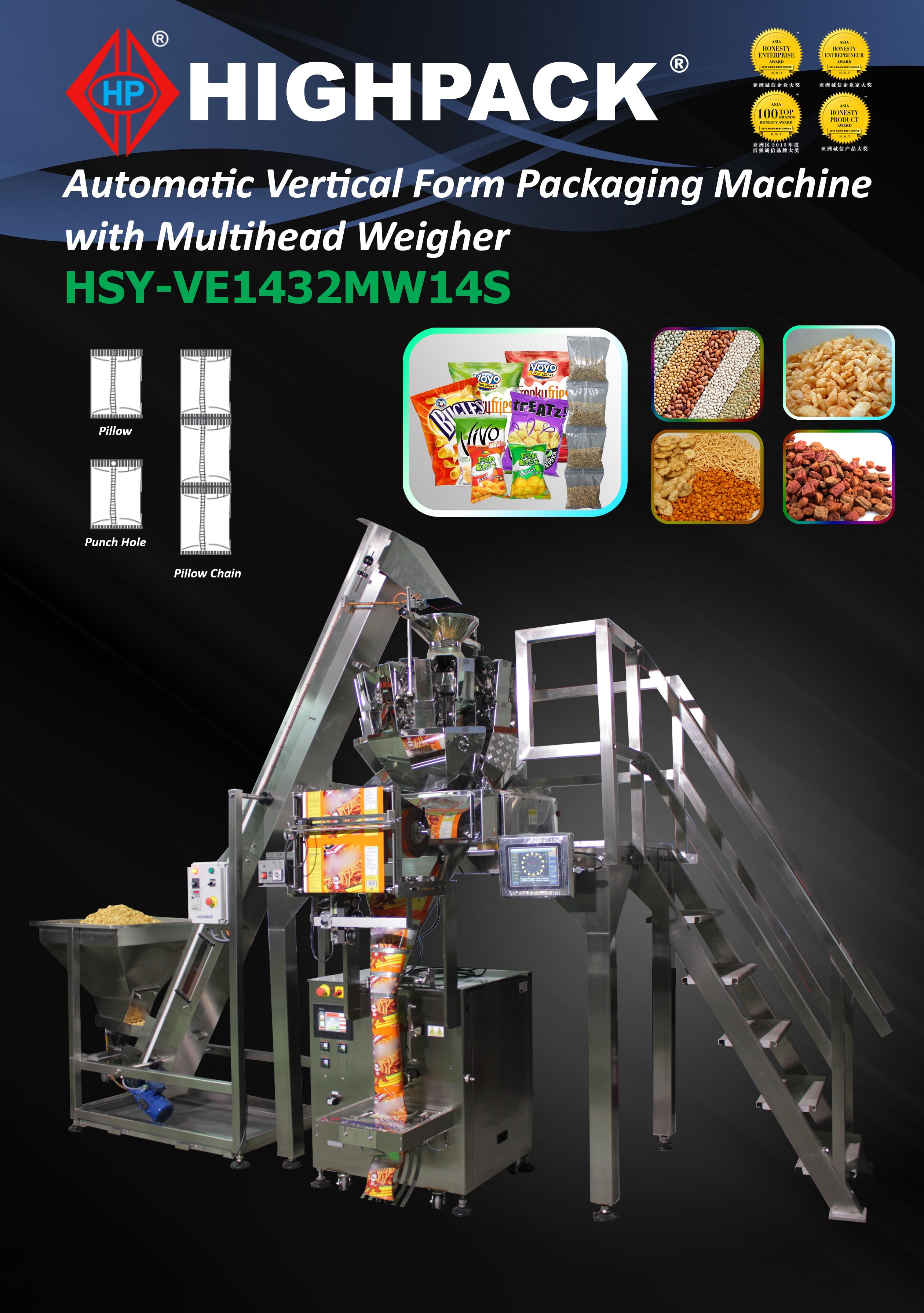

Automatic Vertical Form Packaging Machine With Multihead Weigher

Model : HSY-VE1432MW14S


🔍 click here to enlarge



⤋ view / download catalogue


► play demo video

Packing method :

Pillow


Pillow chain

Main Features

  • Packaging Versatility
    The HSY-VE1432MW14S is capable of performing multiple standard bag styles, such as pillow bags, side gusseted bags and stand up block bottom bags.
  • Application Versatility
    The HSY-VE1432MW14S are combined with multihead weighing system, which were used to be weighing certain vegetables, then constantly expanded exponentially applied on rapid weighing of snacks and confectionery into bags, in commons of flowed easily through machine and into the pack, with no more encouragement than gravity and moderate level of vibration of feeders. Machine designed to package an unlimited variety of products, such as granules (eg. coffee granules), bakery and confectionery (eg. Biscuit, chocolates), loose tea, real meal complex product (eg. Rice, meat, vegetables) as well as pet food and non-food products.
  • Function Versatility
    Reliable and accurate servo motors for all machine functions. From the wrapping material in-feed to bag forming, sealing the seams, up to the filling. The accurate product dosing is performed immediately after the bottom sealing.
  • Film Material Versatility
    The flexible machine offers heat-sealing and poly-sealing options, with freely adjustable sealing temperature according to product specification.
  • Easy Integration
    The modular machine design of HSY-VE1432 with various up and downstream interfaces allows for easy integration of: dosing devices (screw augers, weightier, cup-fillers, liquid pumps), coffee valve applicators, gas flushing, printers, labellers as well as check-weightier and metal detector.
  • Module ++
    As part of the Highpack Packaging Technology portfolio, the modular machine design of the HSY-VE1432MW14S allows an easy integration with other packaging equipment such as Robots or case packers for secondary packaging.

  • Machine Design
    The low machine height facilitates a compact product stream, leading to higher speed and increased efficiency and ergonomics.
  •

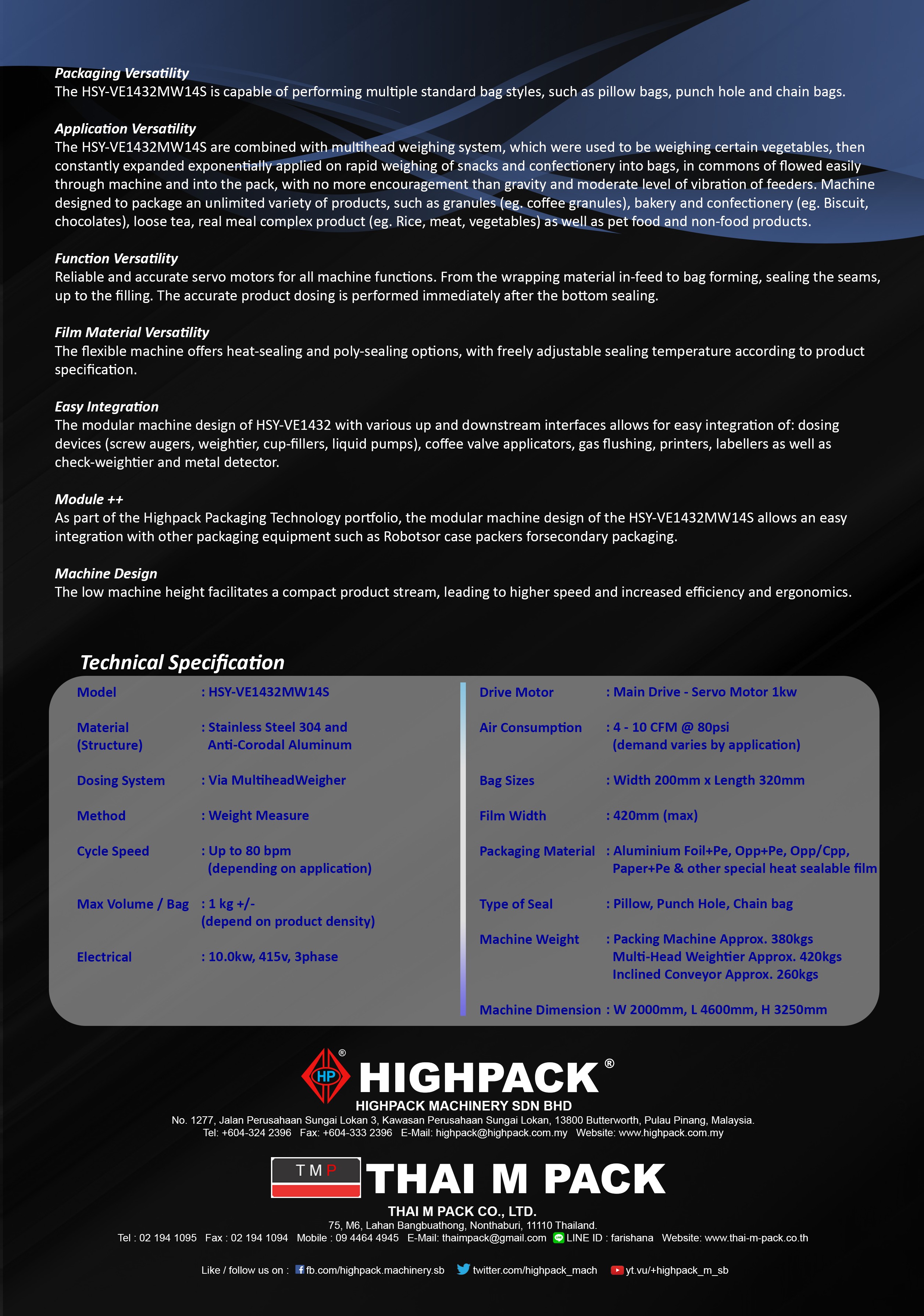

    Technical Specification

    Model HSY-VE1432MW14S
    Material (Structure) Stainless Steel 304 and Anti-Corodal Aluminum
    Dosing System Via Multihead Weigher
    Method Weight Measure
    Cycle Speed Up to 80 bpm (depending on application)
    Measuring Range 220cc +/- max (depend on product's weight)
    Electrical 10.0kw, 415v, 3phase
    Drive Motor Main Drive - Servo Motor 1kw
    Air Consumption 4 - 10 CFM @ 80psi (demand varies by application)
    Bag Sizes Width 195mm x Length 200mm
    Film Width 400mm max.
    Packaging Material Aluminium Foil+Pe, Opp+Pe, Opp/Cpp, Paper+Pe & Other Special Heat Sealable Film.
    Type of Seal Center Seal, Chain Bag
    Machine Weight Packing Machine Approx. 720kgs
    Multi-Head Weightier Approx. 420kgs
    Machine dimension W 2000mm, L 4600mm, H 3250mm
