PRODUCTS & SERVICES

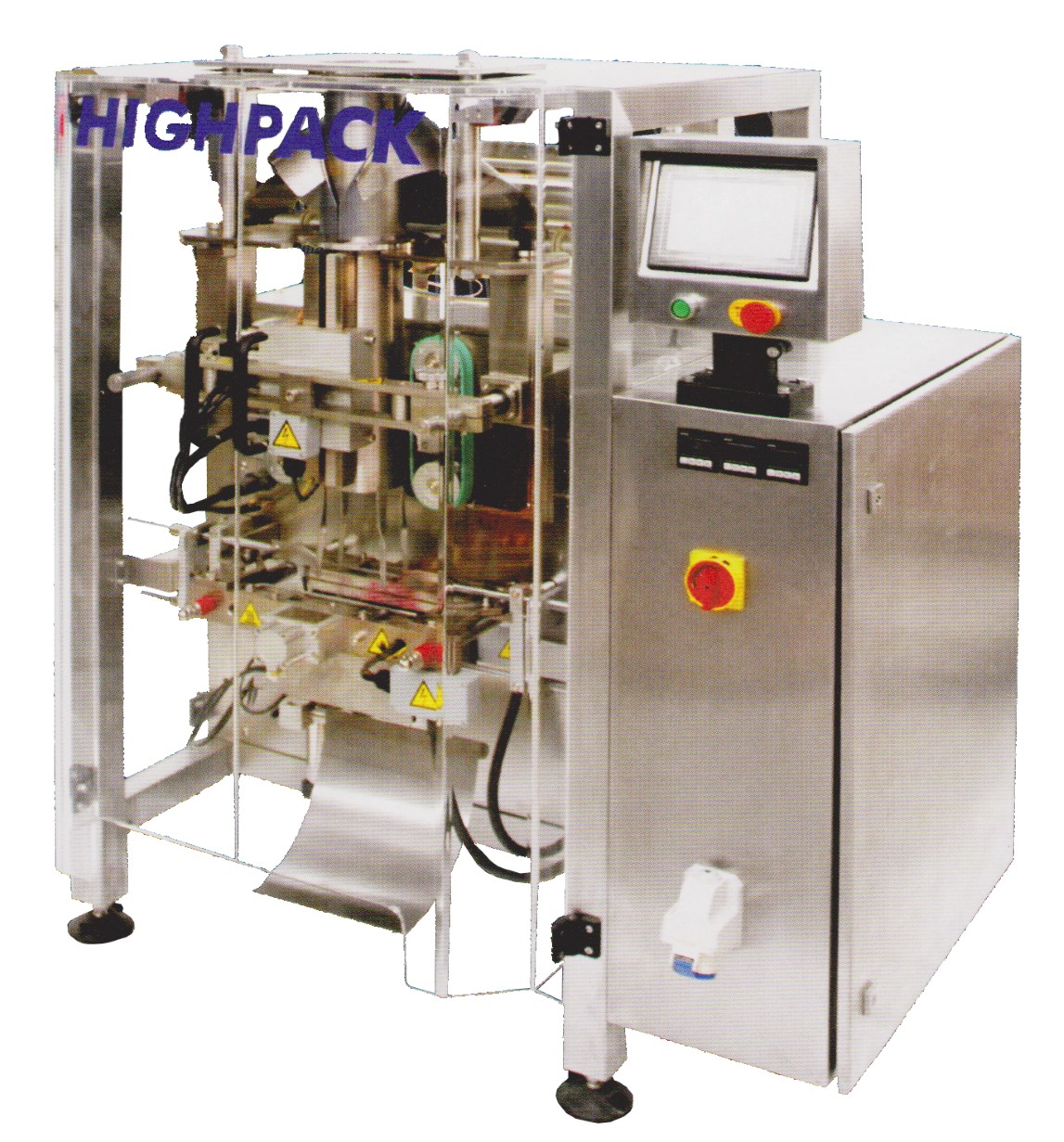

Automatic Vertical Packing Machine [Belt Driving with Servo Motor]

Model : HSY-VM600 / HSY-VM800 / HSY-VM900

Packing method :

Pillow

Pillow punch-hole

Pillow chain

Main Features

Friction Drive Film Transport Belts.
Belt Driving By The Servo Motor To Enables Resistant, Uniform, Well-proportioned Seals And Give Great Operating Flexibility.
High Power Servo Motor On Horizontal Sealing Jaws To Enable The Flexibility Of Sealing Pressure And Jaw Open Distance. Suitable For A Variety Packaging Materials.
Extremely Simple And Easy To Learn Programming Software. Horizontal Jaw Obstruction Detection, Incorporating Instantaneous Machine Stoppage.
Fully Interlock Guarding System, Film Reel Run-out Device.
Full Synchronization For Printer And Feed Systems.
The Model is suitable For Pillow Bag, Triangle Bag, Chain Bag, Hole Bag

Technical Specification

model	HSY-VM600	HSY-VM800	HSY-VM900
Packing Speed	Max : 85 Bags/Min	Max : 70 Bags/Min	Max : 60 Bags/Min
Width	Max : 250MM	Max : 300MM	Max : 350MM
Length	Max : 320MM	Max : 450MM	Max : 500MM
Air Consumption	6KG / CMP
Air Consumption	0.25 Mp/Min	0.30 Mp/Min	0.25 Mp/Min
Power Consumption	Single Phase 230V / Three Phase 415
Power Consumption	2.5 KW	3.0 KW	3.5 KW
Material	Construction Material AISI 304 & Anticorodal Aluminium
Machine Weight	650KG	750KG	850KG
Dimension	W 1160MM x L 1254MM x H 1460MM	W 1280MM x L 1520MM x H 1750MM	W 1440MM x L 1520MM x H 2000MM
