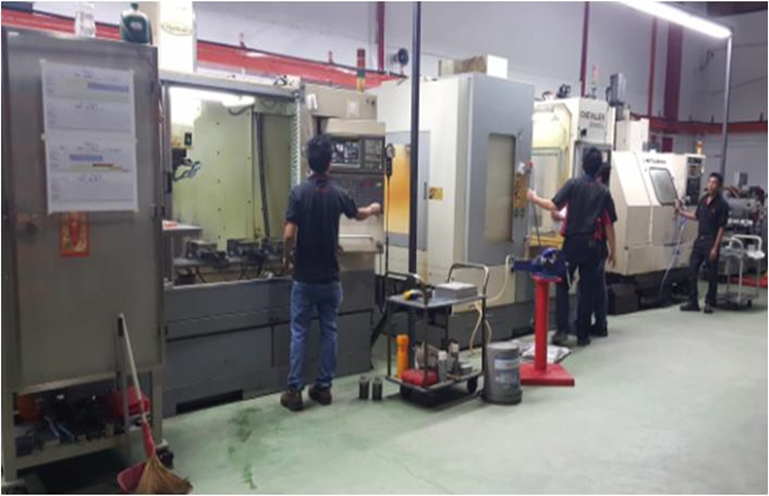

AUTOMATIC MILLING CNC MACHINE
- Automated CNC Machine with high reliability in metal CNC milling process
- reliable machine resulted production consistency and high efficiency
- precision job capability to ensure the goods output with quality finishing
- performance and stability, sustain-able to coupe and produce huge volume with ensuring product quality at the same time
- Currently was owned CNC machines as listed below but not limited to.
Hartford VMC-1020S CNC Machine
Model : Hartford VMC-1020SController : MITSUBISHI M64S
Table : 1200 x 470mm.
Travel ( x,y,z ) : 1020, 510, 510 mm.
Cutting Feed Rate : 1 - 12,000 mm/min
Spindle speed : 60 - 8,000 RPM
Max. Table Load : 650 kgs.
ToolShank : BT40

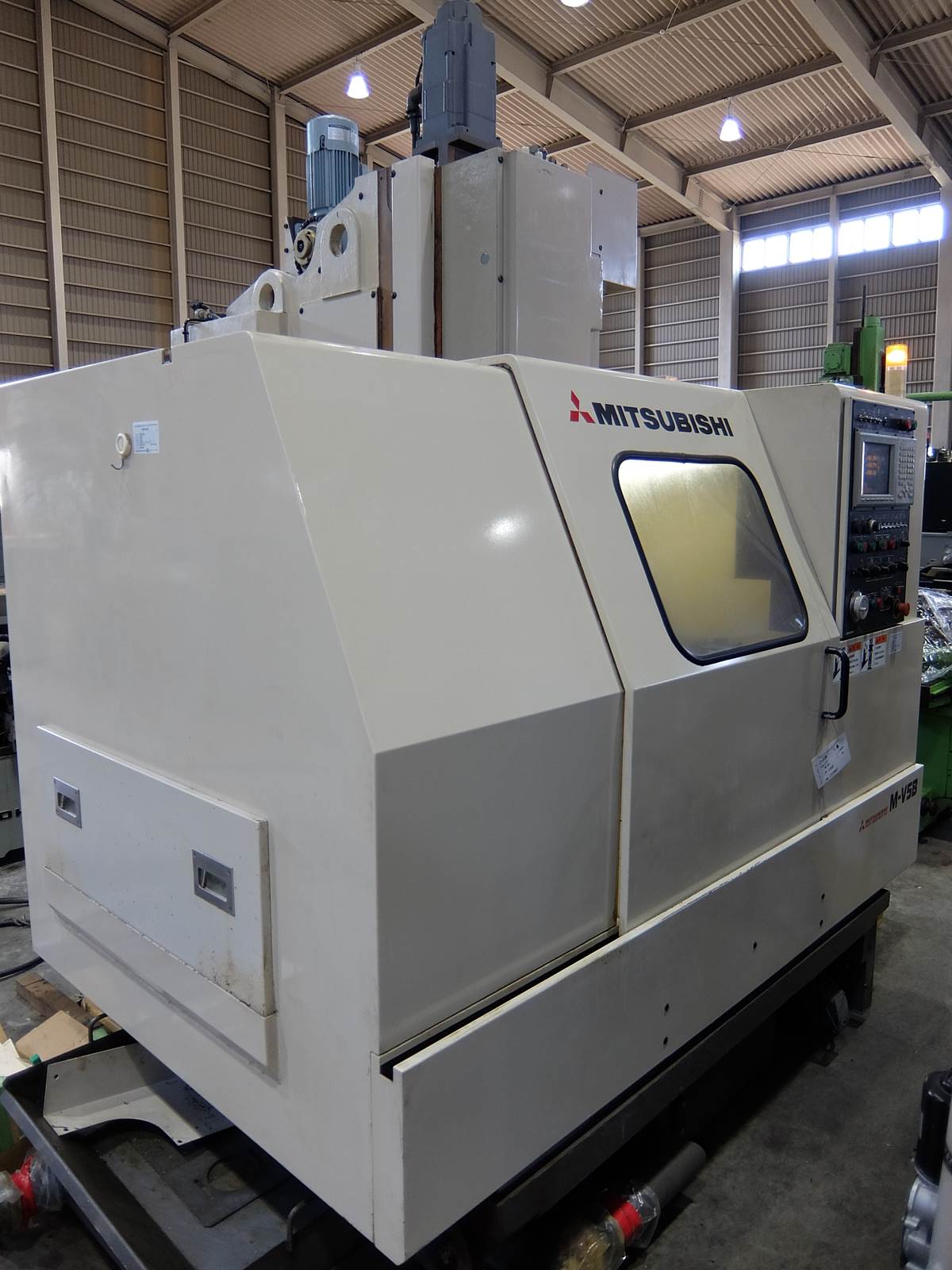

Mitsubishi M-V5B CNC Machine
Model : Mitsubishi M-V5BTable Size : 1000x 510mm
Table Load : 500kg
Travel ( X / Y / Z ) : 800 x 510 x 460
Rapid traverse on (X/Y/Z) Axes : 30/ 30/ 20m/min
Cutting Feedrate : 1~10000mm/min (0.04~394 ipm)
Spindle output (30min. Cont.) : 7.5/5.5 KW
Spindle Speed : standard : 80~8000rpm / optional : 120~12000rpm
Spindle nose Taper : ISO/NT #40
Spindle Diameter : 70mm
ATC - tool storage cap. : 18 (std) / 30 (opt)
ATC - Max. Tool Length : Ø 80 x L 250 (Ø102 x L 150 when adjacent tool pots are empty)
ATC - Max. Tool Weight : 7kg
ATC - tool change time : 1.5s
Power Required : 23KVA
Machine weight (ATC+CP.) : 4500kg

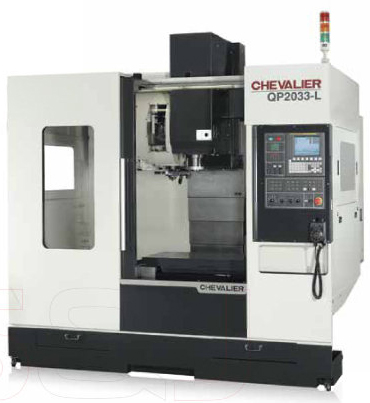

chevalier QP2033-L CNC Machine
Model : chevalier QP2033-L| Table | |
| Table Size | 1000x 510mm (39.4"x 20") |
| T-slots (no x wid x dis) | 5x 18x 100mm (5"x 0.709"x 3.937") |
| Table Load | 500kg (1100lbg) |
| Travel | |
| X Travel | 850mm (33.5") |
| Y Travel | 530mm (21") |
| Z Travel | 510mm (20.1") |
| Spindle | |
| Spindle Nose to Table | 150~660mm (5.9" ~26") |
| Spindle Center to column | 585mm (23") |
| Spindle Taper | 7/24 (#40) |
| Spindle Speed | Belt Drive : 80~8000rpm Belt Drive : 10000/12000rpm (Opt.) Direct Drive : 12000rpm/15000rpm (Opt.) |
| Spindle Diameter | 70mm (2.8") |
| Feed Rates | |
| Rapid on (X/Y/Z) Axes | 30/ 30/ 24m/min (1180/ 1180/ 944ipm) Opt.36/36/30m/min (1417/ 1417/ 1181ipm) |
| Cutting Feedrate | 1~10000mm/min (0.04~394 ipm) |
| Diameter & Pitch of Ballscrew | 40mm, P12 |
| Accuracy | |
| Positioning (Approx.) | JIS ± 0.010mm, VDI3441P 0.010mm |
| Repeatability (Approx.) | JIS± 0.003mm, VDI3441PS 0.007mm |
| Tool Changer | |
| Tool Positions | 24 Arm type 32Chain type/20 Carousal type (Opt.) |
| Tool Shank | BT40, CT40 or DIN40 |
| Pull Stud | P40T-1 |
| Max. Tool Diameter | 24 station cam-arm type 80mm (3.15") |
| Max. Tool Legth | 300mm |
| Max. Tool Weight | 7kg (15lbs) |
| Motors | |
| Spindle Motor | (F)Belt drive7.5/11kw (cont./15min) (S)Belt drive9/12kw, (H)Belt drive7.5/13kw |
| Feeding SystemMotors X,Y,Z | (F)1.8/1.8/2.5kw (Opt.3.0/3.0/4.0kw) |
| Coolant Pump | 1HP (0.76kW) |
| General | |
| Power Required | 20KVA (Opt.25KVA) |
| Air Required | 80 PSI (5kg/cm2),200L/min |
| Machine Size (Lx Wx H) | 2430x2115x 2583mm (95.6"x83"x101") |
| Machine weight (Approx.) | 12800lbs (5800kg) |
